High Efficient Conical Twin Screw Extruder
Main technical features
1. High output, suitable for PVC powder plastic molding of various formulas.
2. Screw and barrel made of high-strength nitrided alloy steel (38CrMoALA), corrosion-resistant, and long service life.
3. Equipped with quantitative feeding system, frequency conversion speed control.
4. Unique screw design, good mixing and plasticizing effect, and sufficient exhaust.
Extruder components:
WEG motor

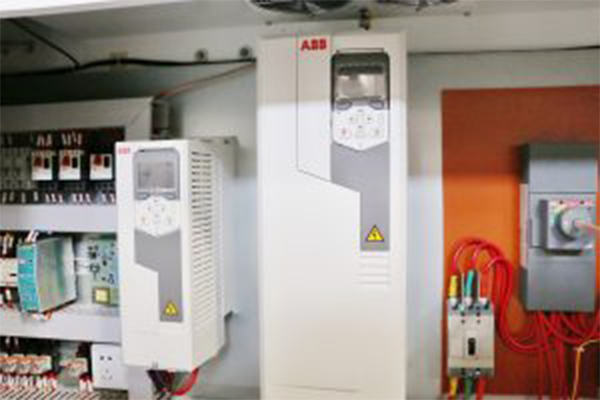

ABB inverter
Heating and cooling
Siemens PLC control system
Well organized electric cabinet
Product Applications
The conical twin-screw extruder can be applied to various formulations of PVC environmental protection water supply pipes, UPVC drainage pipes, CPVC hot water pipes, UPVC square rain down pipes, PVC double-wall corrugated pipes, PVC power cable sheathing pipes, and PVC industrial trunkings And other molding, as well as the configuration and use of PVC granulation production line, PVC door and window profile production line, PVC door panel production line, etc.
Technical Highlights
● Our screws and barrels are made of nitride alloy steel (38CrMoALA) with excellent performance. After thermal refining, qualitative, nitriding, quenching and tempering, the hardness reaches as high as 67-72HRC., wear resistant, anti-corrosion, high strength, good toughness, and excellent plasticizing performance. The barrel is equipped with a cooling fan and a cast aluminum heater, which has high thermal efficiency, fast and uniform heating speed.
● Equipped with a quantitative feeding system, frequency conversion speed control.
● The screw is professionally designed, and the mixing effect and plasticizing effect are good. On the bigger-end of the screw, the heat capacity is large, the screw groove is deep, the contact area between the material and the screw and the barrel is large, and the residence time is longer, which is good for the heat transfer. On the smaller-end of the screw, the residence time of the material is short, and the linear speed and shear rate of the screw are low, which is good for reducing the friction heat between the material, the screw and the barrel.
● The permanent magnet synchronous motor of a well-known brand has high power efficiency, effective energy saving, large allowable overload current, significantly improved reliability, low vibration, low noise, stable operation, and large transmission torque. The motor used by our company can realize stepless speed regulation and adjust the feed rate of the extruder to meet the needs of different customers.
● The reliable core temperature control system can ensure the production of high-quality pipes with different formulations, with high temperature control accuracy and small fluctuations.
● High-performance well-known gearbox, high precision, high load, high efficiency, smooth transmission, low noise, compact structure, low maintenance cost and long service life.
● It can adapt to higher head pressure.
● The plasticization and mixing are uniform and the quality is stable.
● The vacuum exhaust device is equipped with a separator, which is fast and easy to clean. Various devices such as the vacuum exhaust system and the feeding system can further improve the quality of the plastic products, and avoid the overload and feeding fluctuations of the extruder.
Model List
| Model | Screw Diameter (mm) | Max. Speed (rpm) | Motor Power (kW) | Max. Output |
| BLE38/85 | 38/85 | 36 | 11 | 50 |
| BLE45/97 | 45/97 | 43 | 18.5 | 120 |
| BLE55/120 | 55/120 | 39 | 30 | 200 |
| BLE65/132(I） | 65/132 | 39 | 37 | 280 |
| BLE65/132(II） | 65/132 | 39 | 45 | 480 |
| BLE80/156 | 80/156 | 44 | 55-75 | 450 |
| BLE92/188 | 92/188 | 39 | 110 | 850 |
| BLE95/191 | 95/191 | 40 | 132 | 1050 |
Warranty, certificate of conformity
Guangdong Blesson Precision Machinery Co., Ltd. provides a one-year warranty service. During the use of the product, if you have any questions about the product, you can directly contact us for professional after-sales services.
Guangdong Blesson Precision Machinery Co., Ltd. provides product qualification certificates for each product sold, ensuring that each product has been inspected by professional technicians and debuggers.
