What is UPVC Window Profile Extrusion Line?
UPVC Window Profile Extrusion Machine is a special extrusion equipment for manufacturing profiles such as window frames and door frames. Through multiple process steps including heating, plasticizing, extruding, cooling and shaping, UPVC Windows Profile Making Machine processes PVC or PVC-composite materials into window frame profiles and accessory profiles.
BLESSON--------High-precision R&D and manufacturing, a pioneer in customized solutions
Relying on core technologies and customization capabilities, Blesson has built a complete range of profile production line systems covering 150mm, 250mm, 650mm, 850mm and above. Based on cross-sectional data, we help customers accurately match application needs ranging from small and medium-sized door and window profiles to large industrial special-shaped profiles. Choose Blesson, and our engineering team with years of R&D experience will provide you with a one-stop solution including full-process in-depth technical docking, exclusive scheme development, and full-cycle support services, allowing you to easily obtain cost-effective products tailored to your needs.
(I) Configuration Advantages of UPVC Window Profile Extrusion Line
1. Conical Twin-Screw Extruders for PVC Window Profile Extrusion Lines
We offer a series of extruders including single-screw and conical twin-screw types, covering different production capacities and profile processing requirements. The specific models and parameters are as follows:
|
Extruder Type |
Model Specification |
Core Screw Parameters |
Corresponding Capacity |
Adapted Production Line |
Core Advantages |
|
Single-Screw Extruder |
BLD65-25 |
Diameter φ65mm, Length-Diameter Ratio 25:1 |
About 80kg/h |
BLX-150 |
Simple structure, low maintenance cost |
|
Conical Twin-Screw Extruder |
BLE55/120 |
Diameter φ55/120mm, Effective Length 1230mm |
200kg/h |
BLX-150 |
Low energy consumption (permanent magnet synchronous motor), uniform plasticization, suitable for medium-batch production |
|
Conical Twin-Screw Extruder |
BLE65/132 |
Diameter φ65/132mm, Effective Length 1440mm |
280kg/h |
BLX-150, BLX-250 |
Equipped with screw core temperature control, suitable for complex cross-section profiles (e.g., multi-cavity) |
|
Conical Twin-Screw Extruder |
BLE80/156 |
Diameter φ80/156mm, Effective Length 1820mm |
450kg/h |
BLX-850 |
High capacity + strong mixing, suitable for large-scale mass production, industry-leading efficiency |
If customers have other requirements for extruders of PVC Window Profile Extrusion Lines (e.g., parallel twin-screw extruders), we can develop special schemes based on the customization service system, combined with specific production capacity, raw material characteristics and profile specifications, to ensure accurate matching between equipment and production needs.
|
Design Highlights |
Core Value for Customers |
| Material Upgrade: Screws are made of 38CrMoAlA high-grade alloy steel, nitrided (depth 0.5~0.7mm) with hardness up to HV900+ | Wear resistance increased by 30%, reducing production capacity decline caused by screw wear, extending service life and lowering maintenance costs |
| Structural Optimization: Conical twin-screws adopt counter-rotation design with tight meshing; single-screws optimize feeding section pitch to improve feeding stability | Plasticization uniformity increased by 15%, avoiding bubbles and impurities in profiles, with product qualification rate ≥99% |
| Precise Temperature Control: Twin-screws are equipped with core constant temperature system (thermal oil/distilled water optional); single-screws adopt section heating | Raw material melting temperature fluctuation ≤±2℃, ensuring stable profile dimensions and reducing waste caused by temperature deviation |
| Efficient Power: Equipped with Siemens/WanGao permanent magnet synchronous motor + ABB/Inovance inverter, speed regulation range 5~50r/min | Energy consumption reduced by 15% compared with traditional motors, speed regulation accuracy up to ±1r/min, adapting to different production line speeds (0.6~12m/min) |
Through "type segmentation + parameter customization", our extruders achieve accurate adaptation of "cost reduction for small capacity, efficiency improvement for large capacity, and quality guarantee for complex profiles". Whether for small and medium-batch production (BLX-150 series) or large-scale mass production (BLX-850), the optimal screw configuration can be matched to help customers balance the three core demands of "production capacity, energy consumption, and product qualification rate", and reduce comprehensive production costs.
2. Die of PVC Window Profile Extrusion Lines

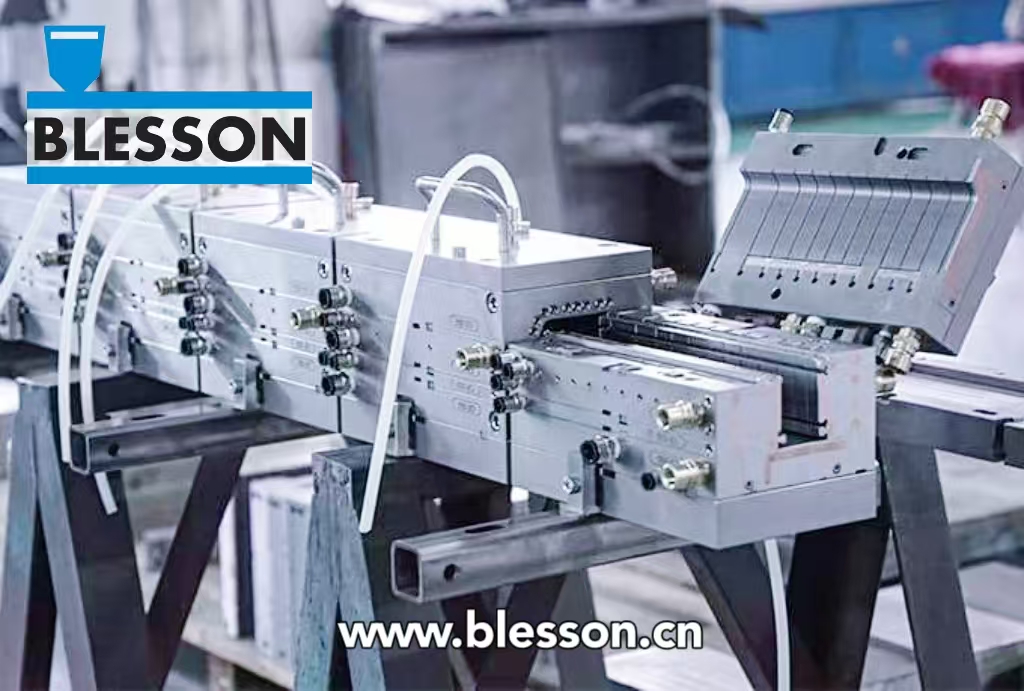

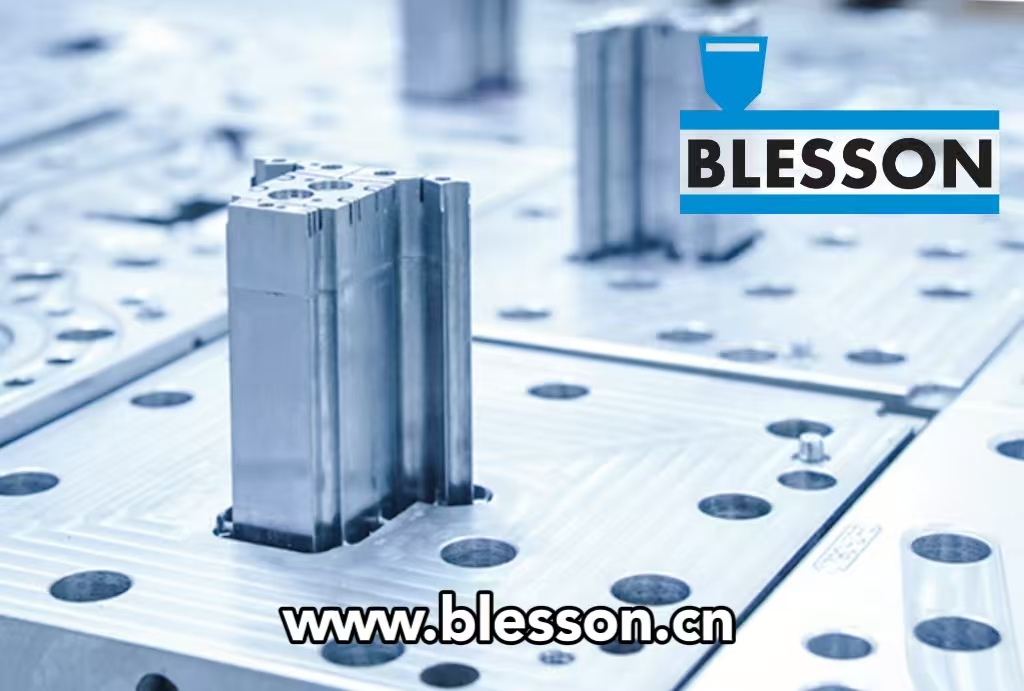

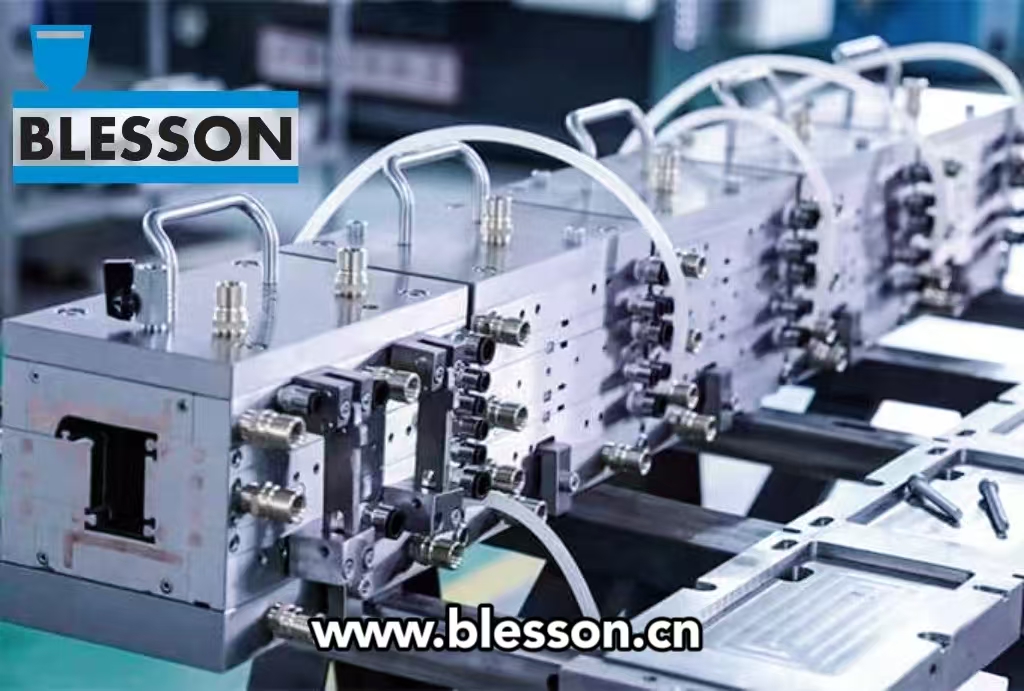

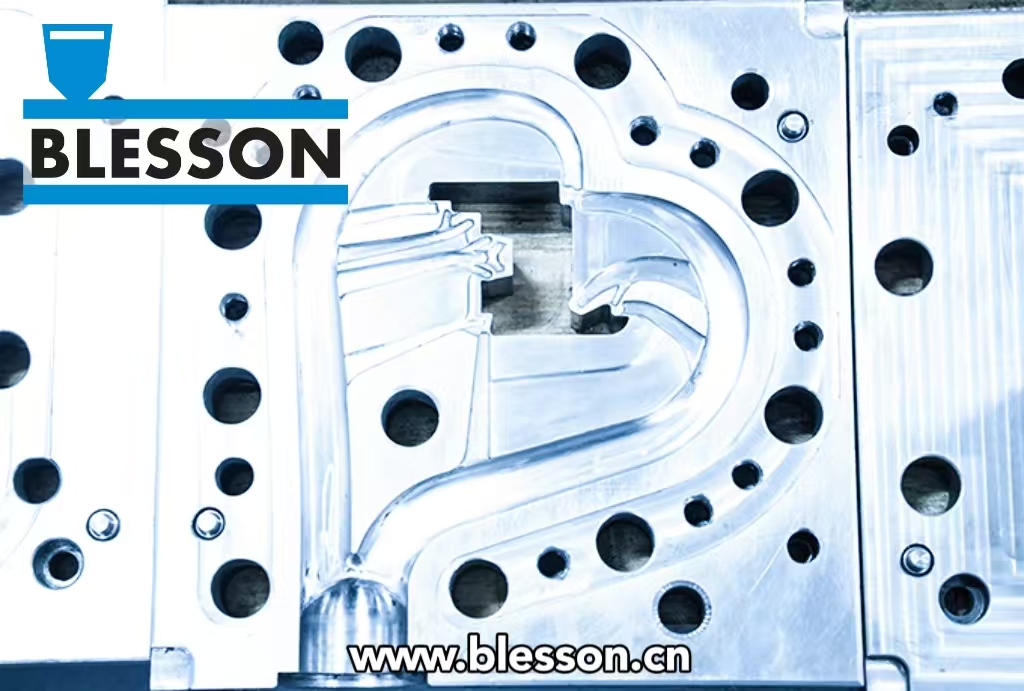

High precision of molds is a difficulty in window profile molding, but it is our core advantage. With "unique precision processing technology + accurate customization" as the core, Blesson helps customers enhance product competitiveness:
- 1. Extrusion die head options: FS136 high-grade mold steel (hardness up to HRC50-52) or 2Cr13 stainless steel;
- 2. Universal calibration die: The main body of the calibration die is uniformly made of 2Cr13 stainless steel, supporting multi-section combination of 200~300mm/section for flexible adaptation to production needs;
- 3. Core Advantages: The service life of FS136 material molds is increased by more than 40% compared with conventional materials, reducing mold change downtime and replacement costs, and helping customers lower comprehensive costs; 2Cr13 stainless steel calibration dies are rust-resistant and durable, suitable for various PVC-U raw material characteristics;
- 4. Precision Processing Technology (standard for all PVC Window Profile Production Lines): All supporting molds for PVC Window Profile Extrusion Lines adopt 5-axis machining centers for integrated cavity forming, combined with ultra-precision polishing technology (surface roughness Ra≤0.4μm), ensuring scratch-free and flawless surfaces of produced PVC/UPVC window profiles; the molds adopt "stepwise temperature control + stress relief" heat treatment process as a whole, with multi-zone temperature control accuracy of ±1℃ and deformation controlled within 0.02mm/m, which can avoid mold deviation and dimensional drift of UPVC Windows Profile Making Machines during long-term operation, and ensure consistent quality of mass-produced PVC/UPVC window profiles.
The core competitiveness of Blesson molds lies in "model-specific matching":
- 1:1 Accurate Development: Exclusive molds can be customized for each model of PVC Window Profile Extrusion Line according to physical samples, CAD drawings or 3D models provided by customers, supporting the development of various window profiles such as casement windows, sliding windows, system windows, as well as special structures with drainage grooves and reinforcing ribs.
3. Vacuum Calibration Tables for PVC Window Profile Extrusion Lines

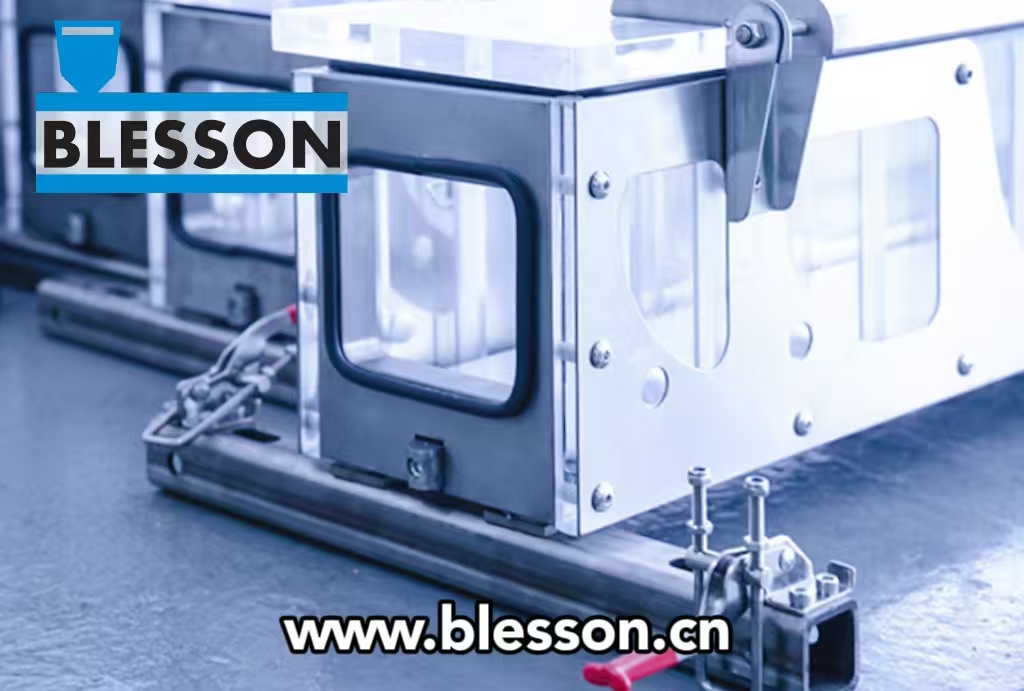

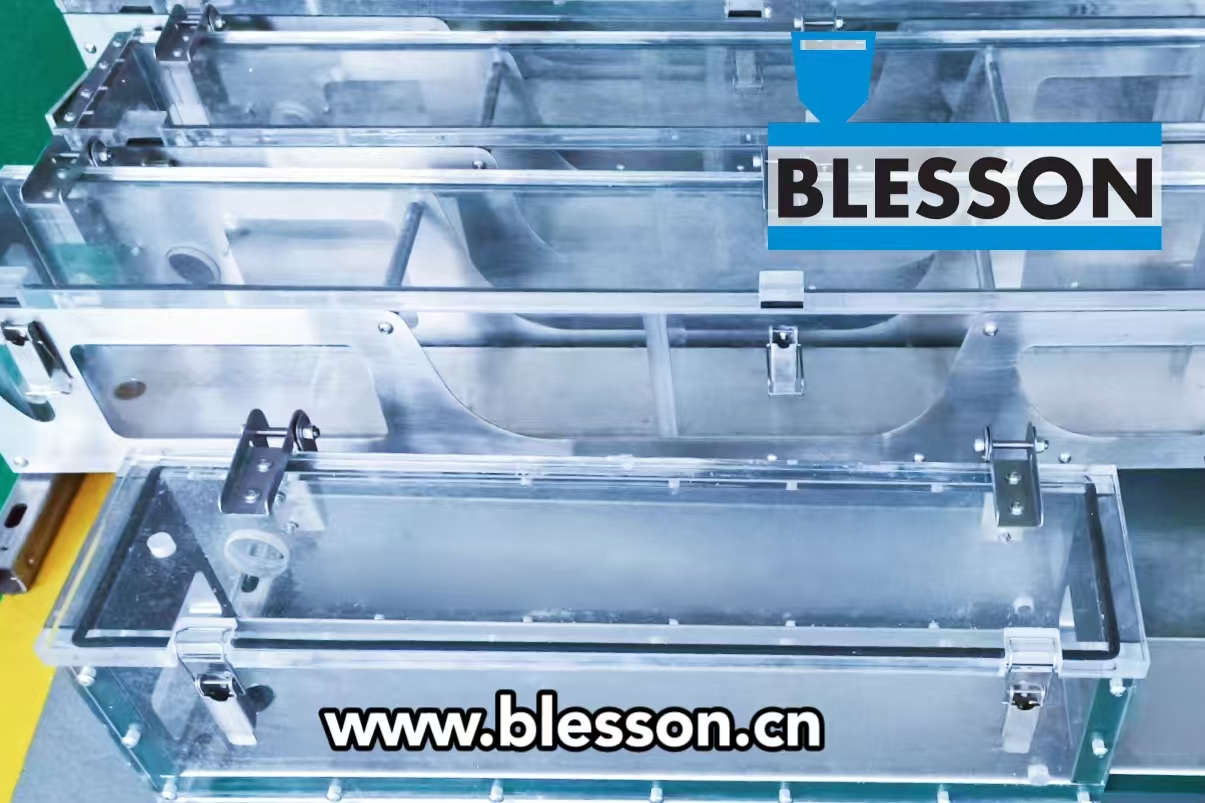

For vacuum calibration tables of window profile extrusion lines, we offer a full range of length specifications including 3.5m, 6m, 9m, 12m and above, and support exclusive customization according to customer production capacity, profile dimensions and workshop layout.
Vacuum Calibration and Cooling System in Window Profile Extrusion Lines:
- 1. Efficient Cooling with Material Upgrade: Stainless steel water tank + optimized water circuit design, combined with double water ring copper calibrator, cooling efficiency increased by 30%, ensuring rapid solidification of profiles and reducing deformation;
- 2. Adjustable Vacuum with Strong Adaptability: Vacuum degree can be accurately adjusted from -0.07~-0.1MPa, providing adaptive adsorption force for profiles of different cross-sections (e.g., narrow frames, multi-cavities), ensuring stable molding of PVC window profile production lines;
- 3. 3D Adjustable for Complex Profiles: Supporting multi-dimensional fine adjustment of ±800mm front and rear, ±100mm up and down, flexibly meeting the production needs of complex profiles.
4.High-Precision haul-off unit of PVC Window Profile Extrusion Line
The high-precision Haul-off unit in Window Profile Extrusion Line can be adapted to UPVC Window Profile Extrusion Line and PVC Window Profile Extrusion Line. Haul-off unit as a core component of the UPVC Window Profile Extrusion Line, it adopts a multi-claw traction structure. This structure can provide strong and stable traction force to ensure that the profile maintains linear movement after cooling and shaping, effectively avoiding deformation. The traction speed can be accurately synchronized with the extrusion speed of PVC profile extrusion machine, ensuring uniform wall thickness of the profile and minimizing dimensional deviation. This advantage is of great significance for improving the production performance of UPVC Windows Profile Making Machine.
5. Cutting Machine of PVC Window Profile Extrusion Line
The cutting equipment in Window Profile Extrusion Line can be adapted to UPVC window profile extrusion machine and PVC Window Profile Production Line, and is equipped with a precision measuring encoder and a circular knife design. With this configuration, the equipment can realize chip-free cutting. After cutting, the profile has a flat and smooth cut, and the length error is strictly controlled within ±1mm. The cutting action can be seamlessly linked with the traction system, which not only ensures production continuity but also reduces material waste. It is one of the iconic advantages of the efficient operation of UPVC Window Profile Extrusion Machine.
6. Control System of PVC Window Profile Extrusion Line
The control system of Window Profile Extrusion Line is compatible with PVC Profile Extrusion Line and UPVC Window Profile Extrusion Line, and can realize precise coordination of all processes such as extrusion, traction and cutting. The system supports storing multiple sets of production formulas, and can quickly call the corresponding parameters when switching products, greatly reducing debugging time and significantly improving production efficiency. This function plays a key supporting role in optimizing the daily production processes of PVC profile extrusion machine and UPVC Windows Profile Making Machine.

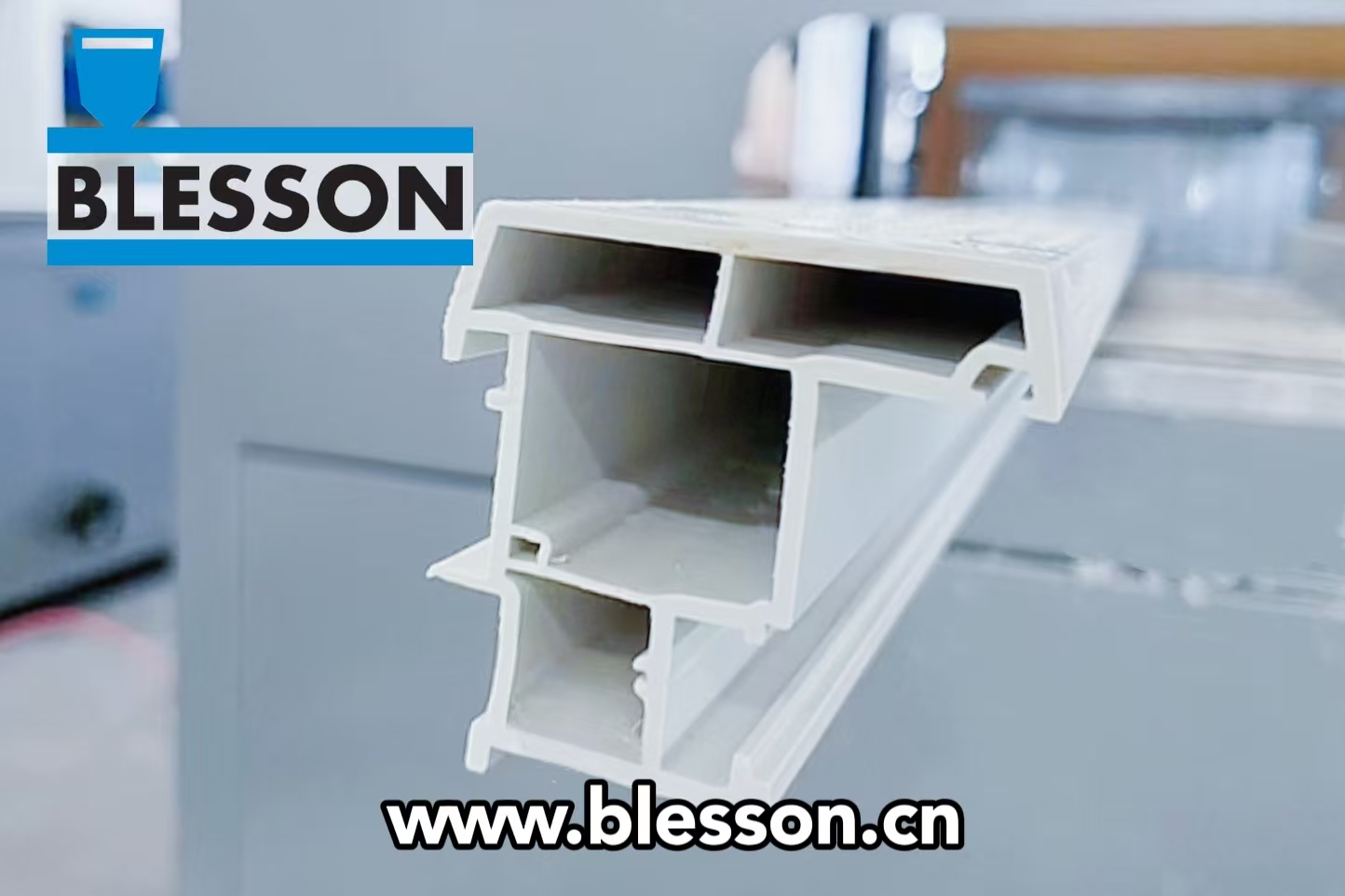

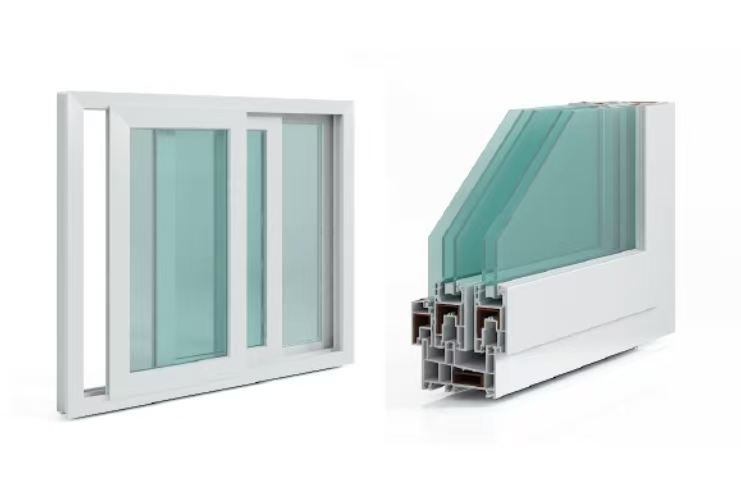

5 Advantages of PVC Window Profile Compared with Aluminum and Wooden Doors and Windows
- 1. The cost of windows is highly controllable:
Under the same strength, the cost of PVC raw materials is much lower than that of aluminum (the advantage is more obvious after metal price increases), ensuring better profit margins.
- 2. The product application range of PVC window profiles is extensive.:
Relying on color film/co-extrusion technology, it can realize multi-style adaptation, which not only avoids the problem of frequent maintenance of wooden windows but also solves the shortcoming of high price of colored aluminum windows.
- 3. The window's durability is prominent:
PVC Window Profile contains embedded steel, multi-cavity drainage structure and anti-ultraviolet components, with long service life and low after-sales cost.
- 4. Excellent Thermal Insulation:
The thermal conductivity is much lower than that of aluminum profiles. Combined with the multi-cavity design, it has a prominent heat insulation effect. For the same type of room using PVC Window Profile, the room temperature is 5-7℃ lower than that with aluminum windows in summer and 8-15℃ higher in winter.
- 5. Strong Sound Insulation:
Adopting welded assembly + closed multi-cavity structure, combined with insulating glass with good sealing effect, it has a significant sound insulation effect, especially suitable for the sound insulation needs of urban center residences.
Application Fields of UPVC Window Profile Extrusion Line
1. Construction Industry---PVC Window Profile Machine
- · Core structural components such as window frames, sash materials and mullions of residential and commercial buildings
- · Thermal insulation door and window systems for energy-saving buildings
- · Indoor and outdoor decorative lines and supporting components
2. Decoration and Renovation Field---PVC Window Profile Machine
- · Indoor partition and screen frames
- · Balcony railings and protective facilities
- · Decorative profiles such as skirting boards and window sills
3. Special Applications---PVC Window Profile Machine
- · Special doors and windows for places with high sound insulation requirements (hospitals, schools, hotels)
- · Anti-corrosion door and window systems for humid environments (bathrooms, kitchens)
- · Door and window upgrade and replacement profiles for old house renovation projects
Summary of PVC Window Profile Machine
Blesson is deeply engaged in the R&D and manufacturing of PVC Window Profile Production Line and UPVC Window Profile Extrusion Line. Relying on a professional technical team and a mature after-sales system, it provides customers with customized equipment solutions. From the core PVC profile extrusion machine to the whole-line configuration, all aim at high efficiency, stability and energy saving, helping customers reduce costs and improve efficiency, and enhance their competitiveness in the door and window profile production field.
WARRANTY AND CERTIFICATE OF CONFORMITY
Guangdong Blesson Precision Machinery Co., Ltd. provides a one-year warranty service. During the use of the product, if you have any questions about the product, you can directly contact us to obtain professional after-sales service. Guangdong Blesson Precision Machinery Co., Ltd. provides a product certificate of conformity for each sold product to ensure that every product has been inspected by professional technicians and commissioning personnel.

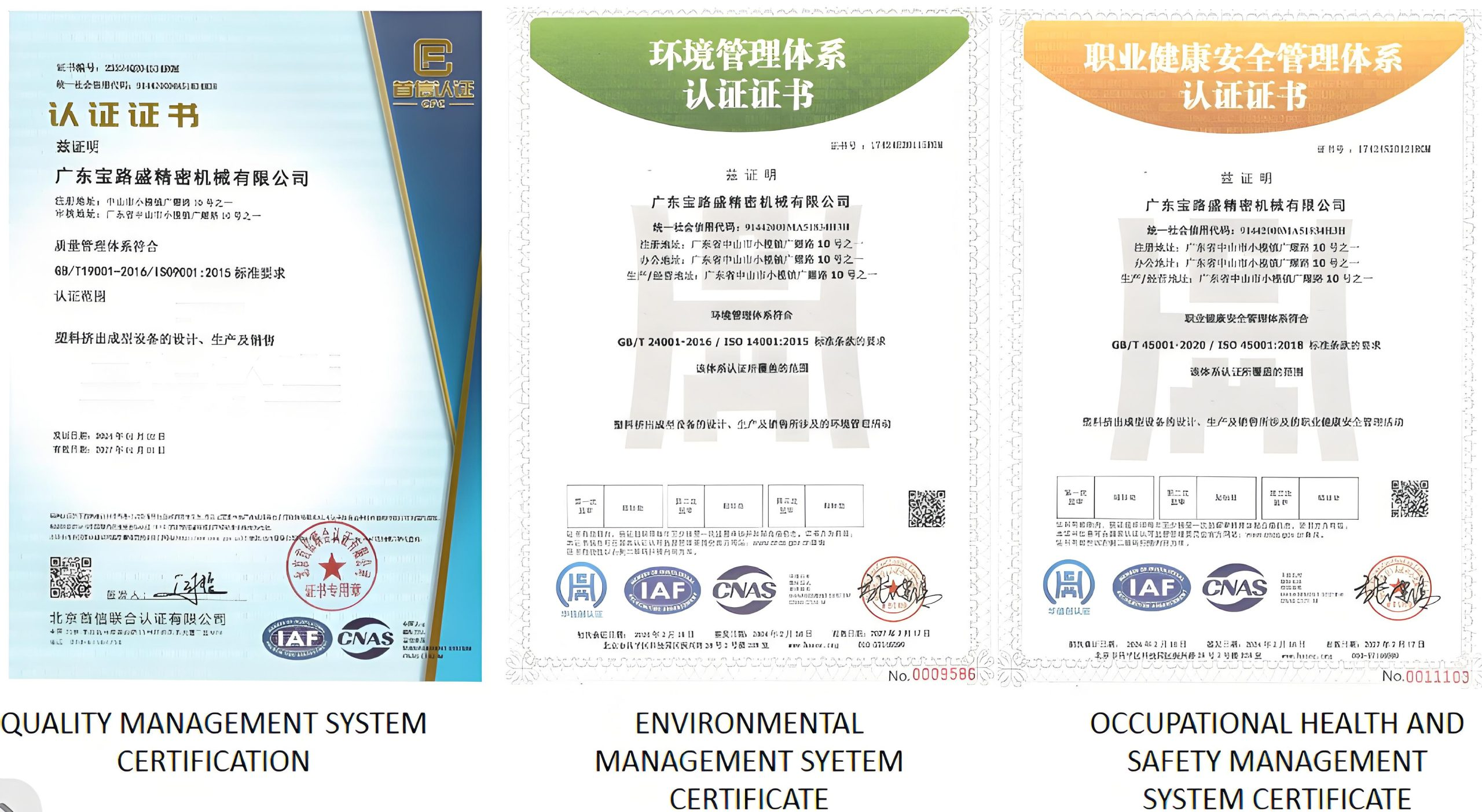

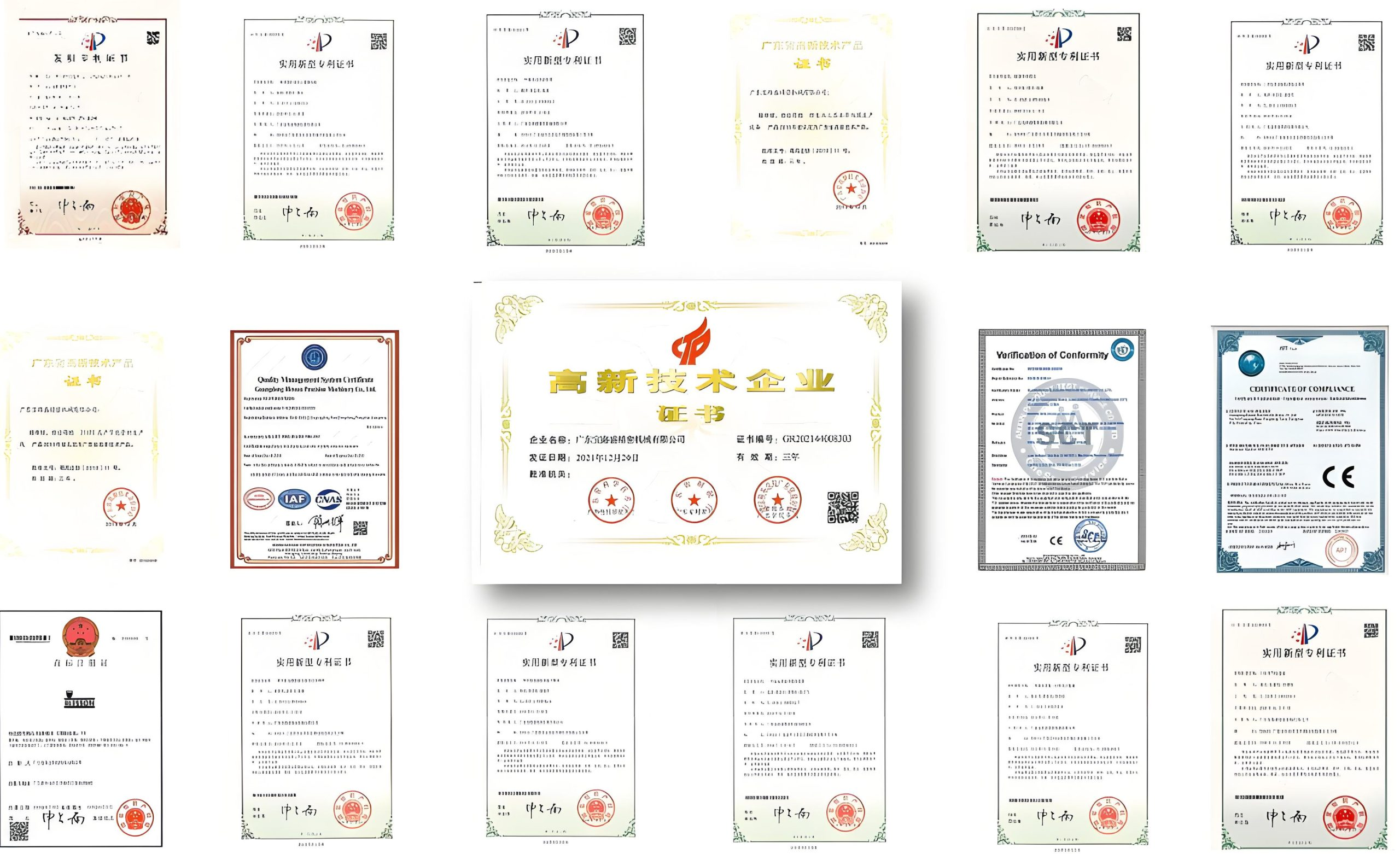

BLESSON-High Technology Expertise Certificate

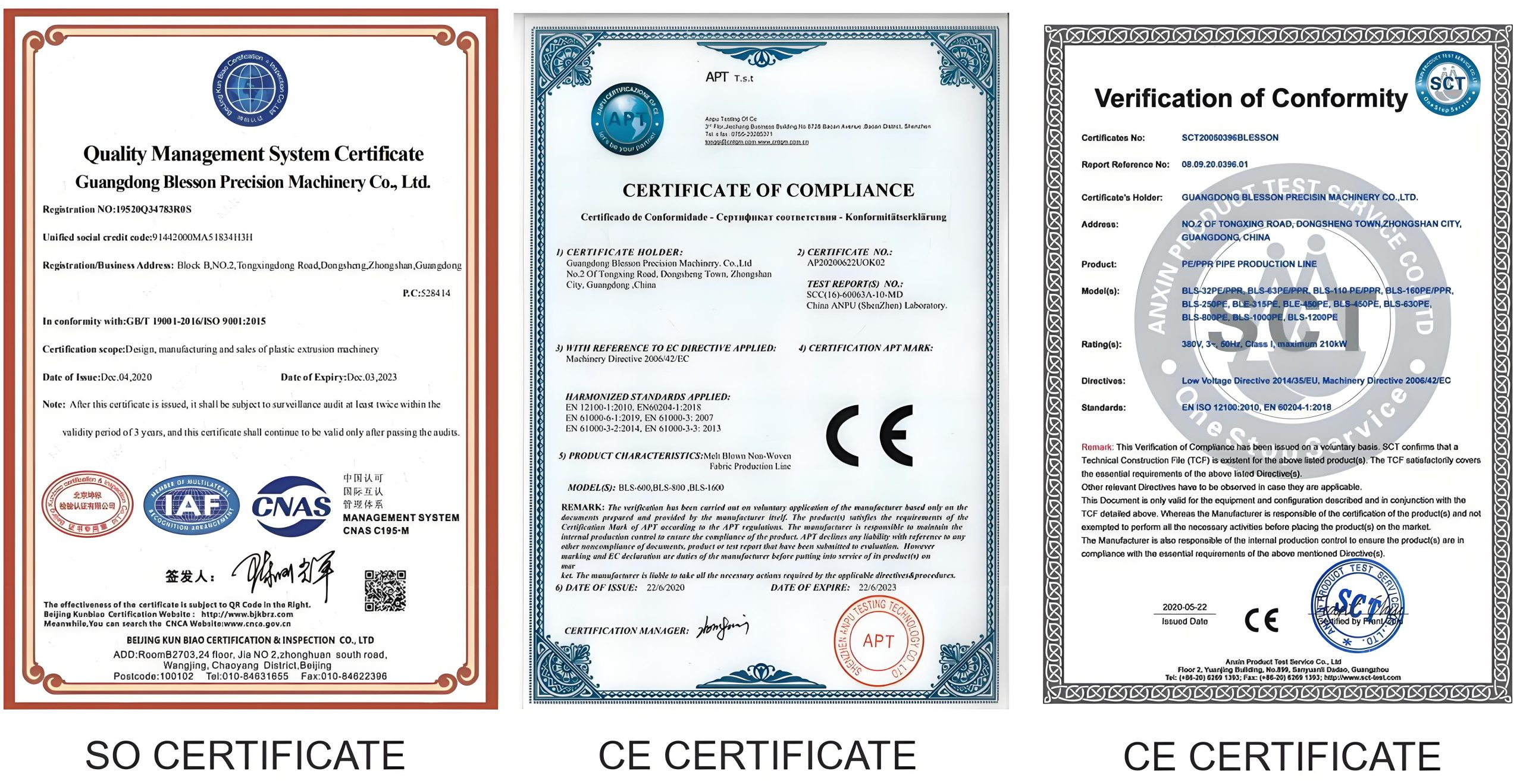

We have successively passed the international GB/T19001-2016/IS09001:2015 Quality Management System Certification, CE certification, etc. And we have been awarded the honorary titles of “China Famous Brand”,”China Independent Innovation Brand” and “National High-tech Enterprise”. Many of our products have obtained various patent certificates.
